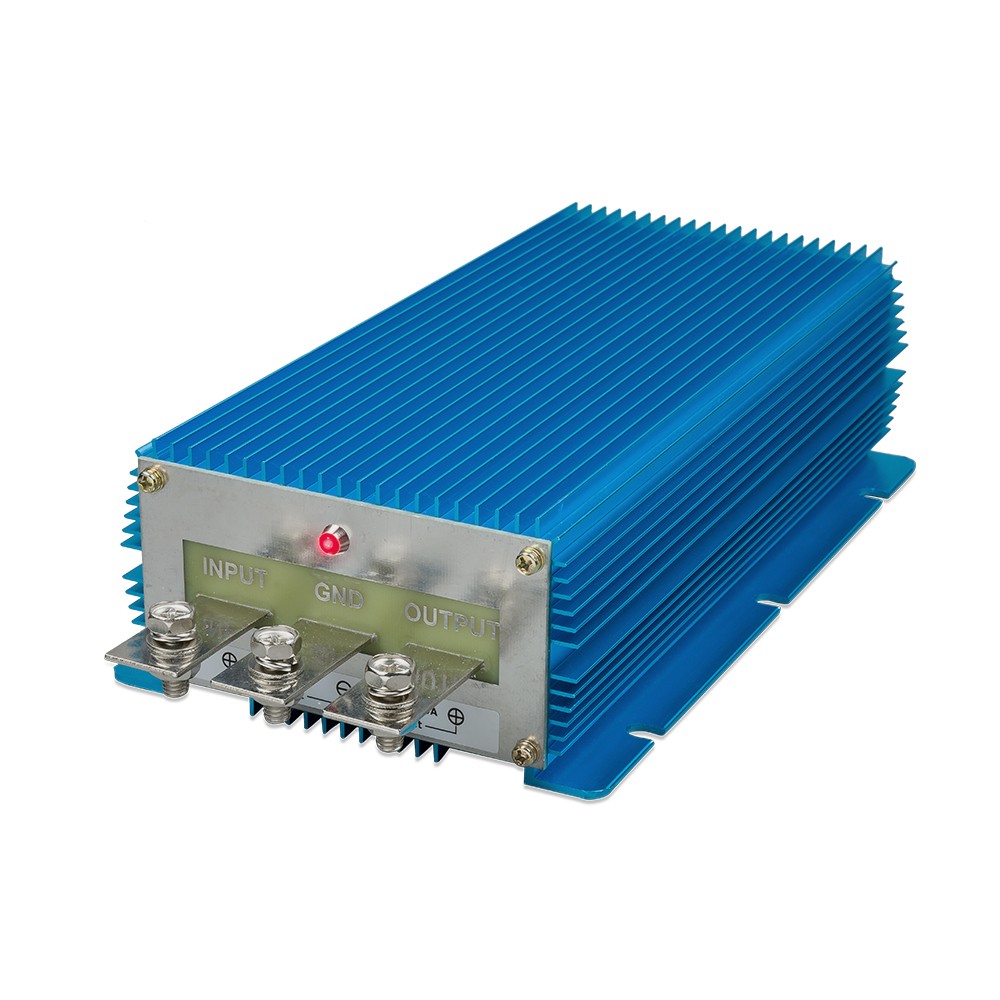

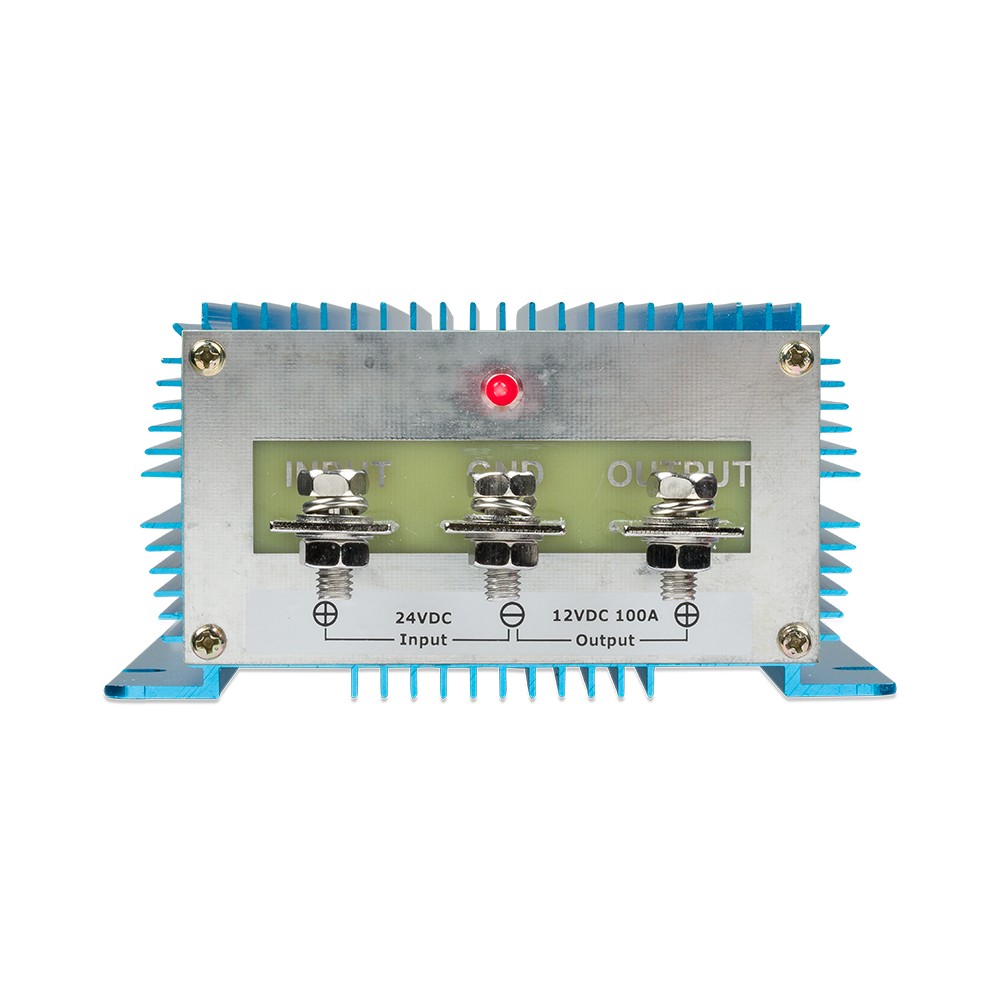

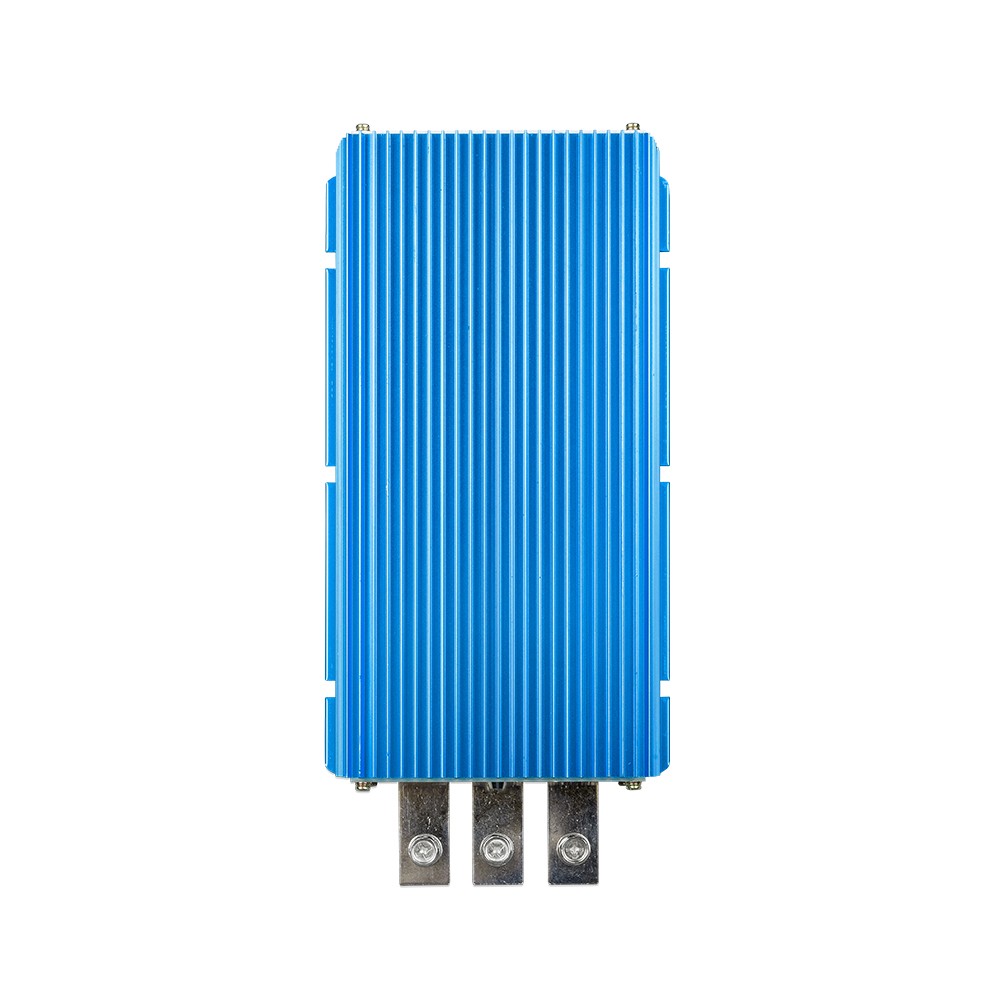

Orion IP67 DC-DC Converter 24/12-100 A Victron Energy
Manufacturer: VICTRON ENERGY
INDEX: ORI241221226
Completely encapsulated: waterproof, shockproof and ignition protected Water, oil or dirt will not damage the Orion IP67 DC-DC Converter. The casing is made of cast aluminium and the electronics are moulded in resin.
Wide input voltage range
With 15 to 40 Volts input range, a stable output is ensured during surges or sags due to other equipment connected to same battery.
Protected against overheating
It can be used in a hot environment such as a machine room.
| Approximate cut-off voltage [V]: | 15 |
|---|---|
| Continuous output current [A]: | 100 |
| DC output voltage [V]: | 12 |
| Input voltage range DC [V]: | 18 - 35 |
| Initial feed-in voltage [V]: | 16 |
| Dimensions WxHxD [mm]: | 127 x 265 x 63 |
|---|---|
| Max. efficiency [%]: | 96 |
