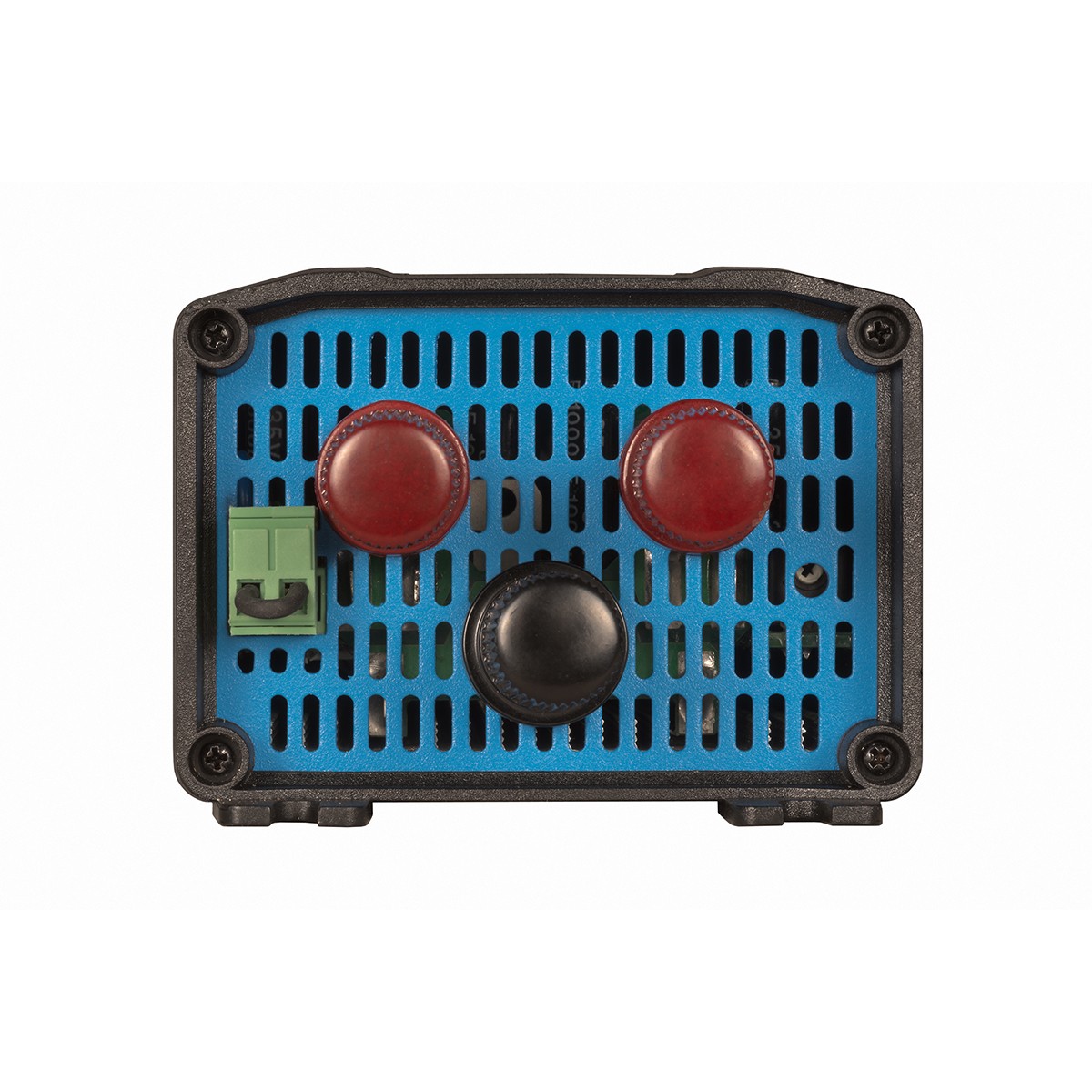

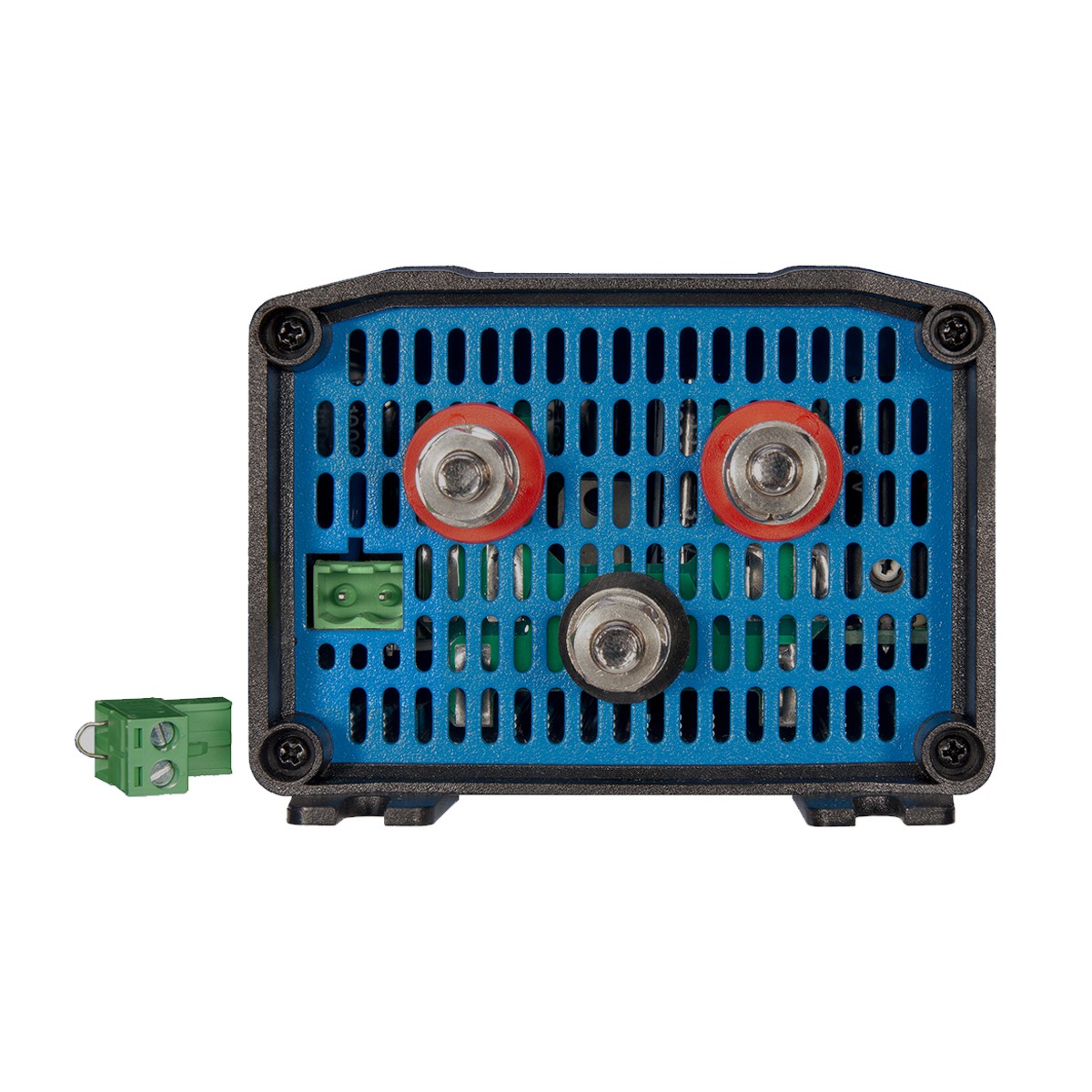

Orion IP20 24/12-70A DC-DC clamp-on converter Victron Energy
Manufacturer: VICTRON ENERGY
INDEX: ORI241270030
Remote on-off connector
The remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by the engine run/stop switch (see manual).
All models with adjustable output can also be used as a battery charger
For example to charge a 12 V starter or accessory battery in an otherwise 24 V system.
All models with adjustable output can be paralleled to increase output current
Up to five units can be connected in parallel.
Easy to install
Delivery includes four Insulated Fastons Female Crimp 6.3 mm.
| Approximate cut-off voltage [V]: | 14 |
|---|---|
| Continuous output current [A]: | 70 |
| DC output voltage range [V]: | 10 - 15 |
| Input voltage range DC [V]: | 18 - 35 |
| Initial feed-in voltage [V]: | 18 |
| Dimensions WxHxD [mm]: | 88 x 65 x 195 |
|---|---|
| Max. efficiency [%]: | 92 |
