The OneMeter Home PV is the latest product on the photovoltaic market. This solution assists in the efficient utilization of electricity from renewable energy sources.

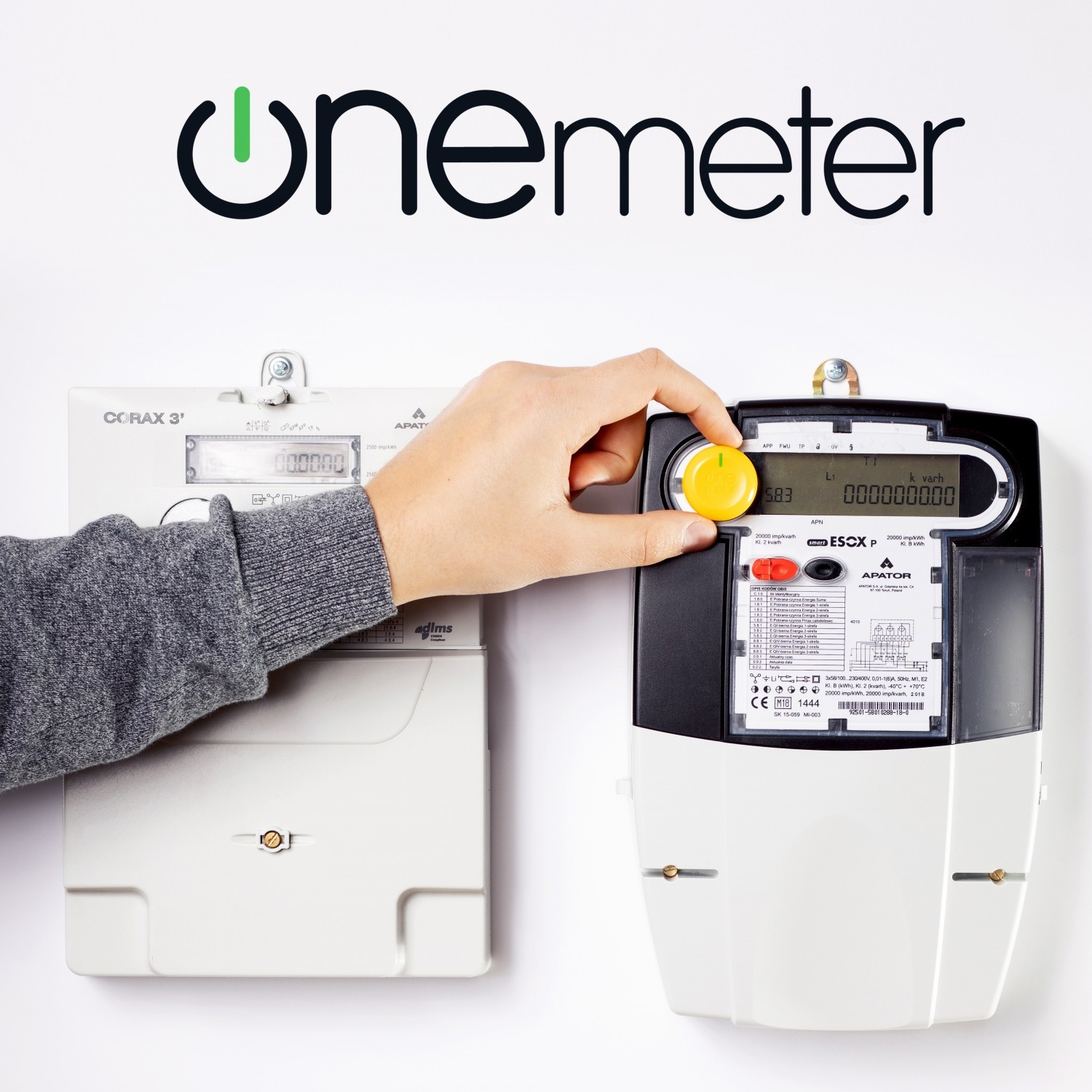

The principle of operation is simple—the OneMeter is mounted on the optical port of a two-way meter (a list of compatible meters is available on onemeter.com/supported-meters) and installed using a mobile application available for Android smartphones. From the moment of installation, the OneMeter collects energy data every 15 minutes, both from and to the network, and when the data is transferred to the OneMeter Cloud platform (via a smartphone), it presents it in the form of tables and charts. Thanks to this solution, the users are aware of the time of day when they consume the most energy and how much excess energy they provide to the grid. The device is powered by a 3 V CR2032 battery (“coin”), which is user-replaceable (usually after about 12 months).

Distinguishing features of the product:

The OneMeter Home PV is suitable for use by prosumers and consumers in tariff group G

Energy bank function, which allows you to find out at any time how much excess energy you have accumulated in the so-called virtual energy storage at the operator

The price includes unlimited access to the OneMeter Cloud service (no subscription or additional fees)

The OneMeter is a fully legal solution and its installation is very simple and does not require special permissions or approval of the power supplier. The absence of a negative impact on the operation of the energy consumption meter was confirmed by tests carried out at the Institute of Communications.

Device specification:

• Supported tariffs: G
• Method of communication: Bluetooth LE, Optical
• Max. range in gateway mode: 50 m (highly dependent on environment and receiving device)
• Max. range in connection mode: 10 m (highly dependent on environment and receiving device)
• Memory: 512 KB
• Operating temperature: -20 .. 50°C
• Encryption: AES 128-bit
• Height: 15 mm
• Diameter: 32 mm
• Weight: 18 g
• PV Colour: Yellow
• Housing material: PC (polycarbonate)
• Optical port material: ABS (acrylonitrile-butadiene-styrene)
• Mounting: Magnetic (N35 rare-earth neodymium magnet)
• Battery life: about 12 months (battery life depends on the frequency of synchronization and the number of parameters read from the meter)
• Battery: CR2032
• Protection rating: IP40
